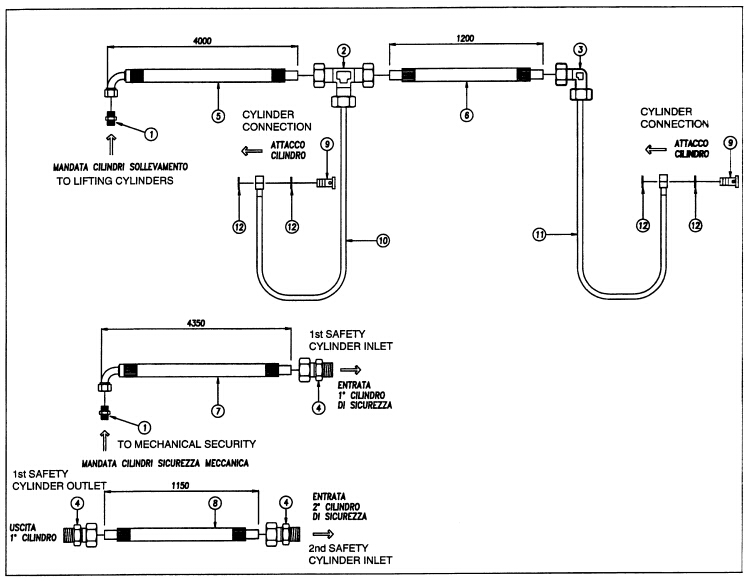

262, hydraulisk forbindelse
|
 |
| |
Symbolforklaring
|
| Pos
|
Kode
| Beskrivelse
|
| 1 |
B3081 |
Nipple 1/4 |
|
| 2 |
R0731 |
"T" fitting ø8 |
|
| 3 |
R0730 |
"L" fitting ø8 |
|
| 4 |
R0729 |
1/8 gas fitting with gasket |
|
| 5 |
R0736 |
Pipe 1/4" L=4000 |
|
| 6 |
R0735 |
Pipe 1/4" L=1200 |
|
| 7 |
R0734 |
Pipe 1/4" L=4350 |
|
| 8 |
R0733 |
Pipe 1/4" L=1150 |
|
| 9 |
R0765 |
Fitting M12 x 1,5 |
|
| 10 |
R0727 |
Bonderized pipe 8 x 1,5, right |
|
| 11 |
R0726 |
Bonderized pipe 8 x 1,5, left |
|
| 12 |
R2205 |
Copper washer ø12 x 18 x 1,5 |
|
